OUR TOP-OF-THE-LINE VAN BUILD
TrueVan Vision
Starting at
$69,000
for upfitting
-or-
Vision package
with van included
$159,000
-or-
Vision X package
with van included
$179,000
Built on the 144” Mercedes Sprinter
KEY FEATURES
Seat & Sleep
Seats and sleeps up to 4 passengers

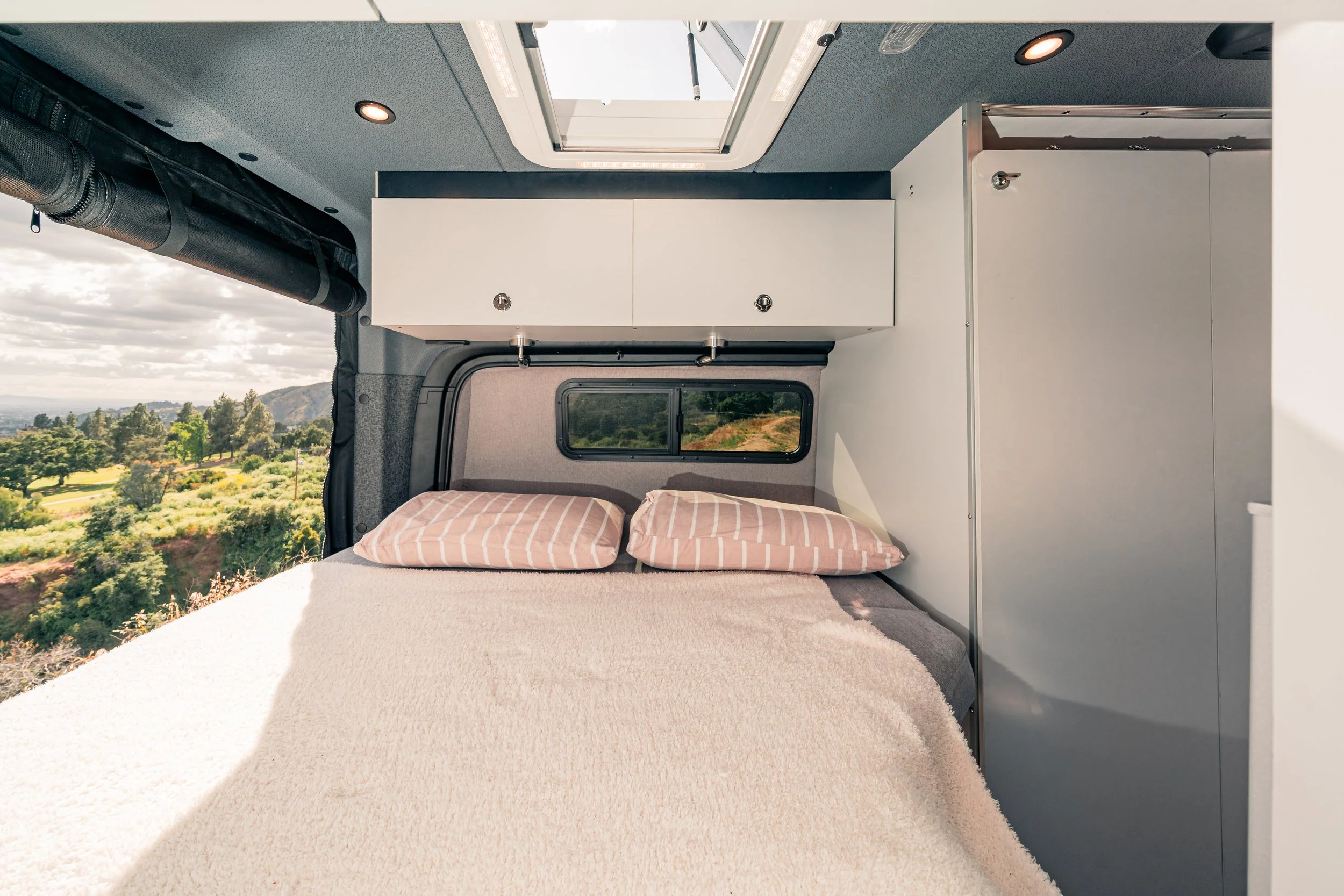

Near queen sized bed
Built in convertible dinette bench (std. on Vision X)
Swivel front captain seats
Water & Power
800Ah Power bank (1100Ah std. on Vision X)
Solar panels (std. on Vision X)
Up to 42 gallons of fresh water
Up to 24 gallon gray water tank
24 Gallon black water tank (optional)
Water heater (optional)
Comfort
Cassette toilet (other toilet options available)
Large wardrobe
Cabin air heater
Air conditioner
Indoor shower (optional for Vision)
Fully enclosed private shower (std. on Vision X)
Our innovative 3-in-1 system
No TrueVan build would be complete without the ability to transform from a garage, to a work space, and to a bed, all within 15 seconds.
Best views in the city… or wherever
Each morning, you wake in your camper van's snug haven, greeted by a novel tableau. With every sunrise, a fresh world reveals itself, nature's vibrant mosaic. The promise of new horizons beckons, igniting your adventurous spirit. Hemingway would be jealous.

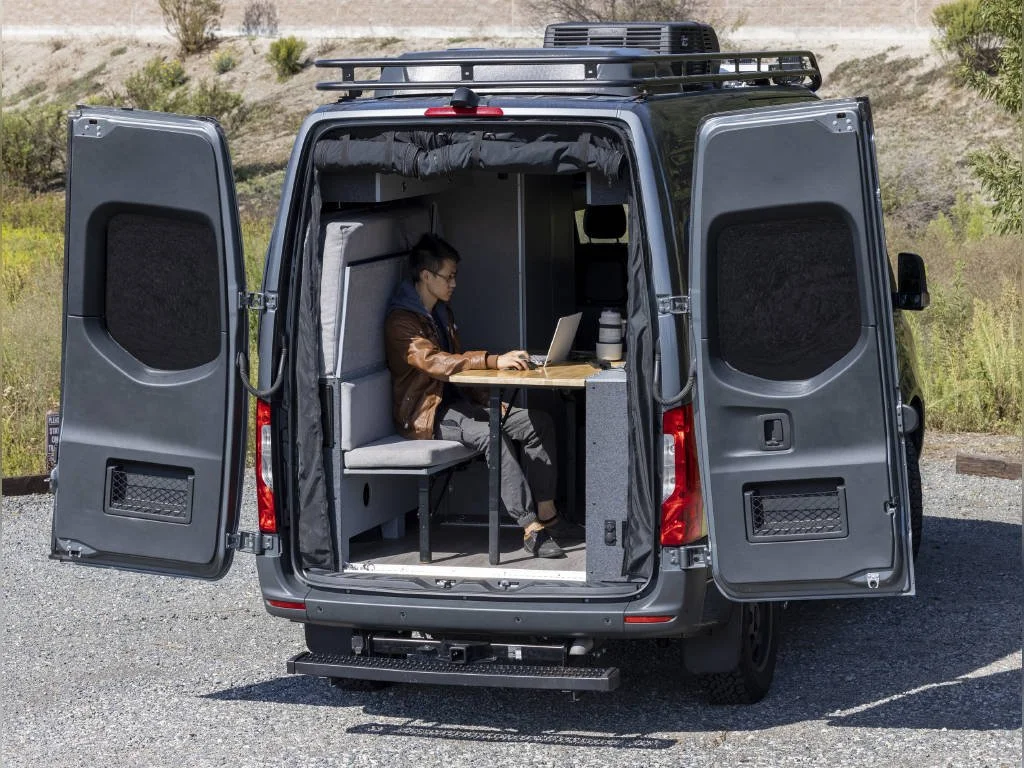

Any space is a productivity oasis
Redefine work-life balance with the flexibility of a mobile workspace. Tailored for digital nomads, entrepreneurs, and creative minds alike, our expansive desk area is the perfect place for elevating productivity while taking in the views.
Access whenever, Privacy wherever
Our rear screen doors can be opened in any number of configurations. Access to the garage while someone is sleeping on the bed? No sweat. Keep prying eyes off your toys but want to feel the summer breeze? Easy. Doing it without worrying about mosquitos? Priceless.
The magic of magnetism
Our screen door magically closes with the help of ultra strong magnets. The heavy duty mesh fabric is impervious to mosquitos and German shepherds and the built in black out shades are sure to keep everyone, including the sun, out of your business.
Have it made in the shade
Our powered awning means your front porch can be anywhere.
Room for everything in its place
Our kitchen cabinet slides out to provide more counter space for your resident chef de cuisine. The storage is perfectly sized for our portable induction stove as well as other kitchenware.
Complete privacy
Our bathroom door cuts off the front of the cabin and provides unparalleled privacy when y ou’re doing your business. The optional 6” shower curtain extension makes the bathroom more spacious.
Welcome to your home away from home.
Welcome to your home away from home.
SPECIFICATIONS
LIVING ROOM
Headliner storage compartment
- Standard on Vision X
Captain seats with 360° swivel base
Insulated walls, ceiling, and flooring
Air heater
- Standard on Vision X
120V Coleman mach10 air conditioner
- Standard on Vision X
Wardrobe closet
TrueVan expandable lagun table
- Standard on Vision X
KITCHEN
Kitchen sink with pull down faucet
- 3 sliding drawers
- 2 under sink cabinets
MAXXAIR 900CFM exhaust fan
External table
- Standard on Vision X
Microwave
1800W Portable induction cooktop
Refrigerator with separate freezer compartment
BATHROOM
Vision X only: Fully enclosed private shower & bathroom
- Included and available on Vision X only
- Built in room divider to separate bedroom & living room
Vision only: Convertible bathroom
- Fold down counter feature
Vision only: Indoor shower & shower pan
- Optional
- Required: 24-gallon gray water tank upgrade
- Increased fresh water tank upgrade HIGHLY RECOMMENDED
5-Gallon cassette toilet
BEDROOM

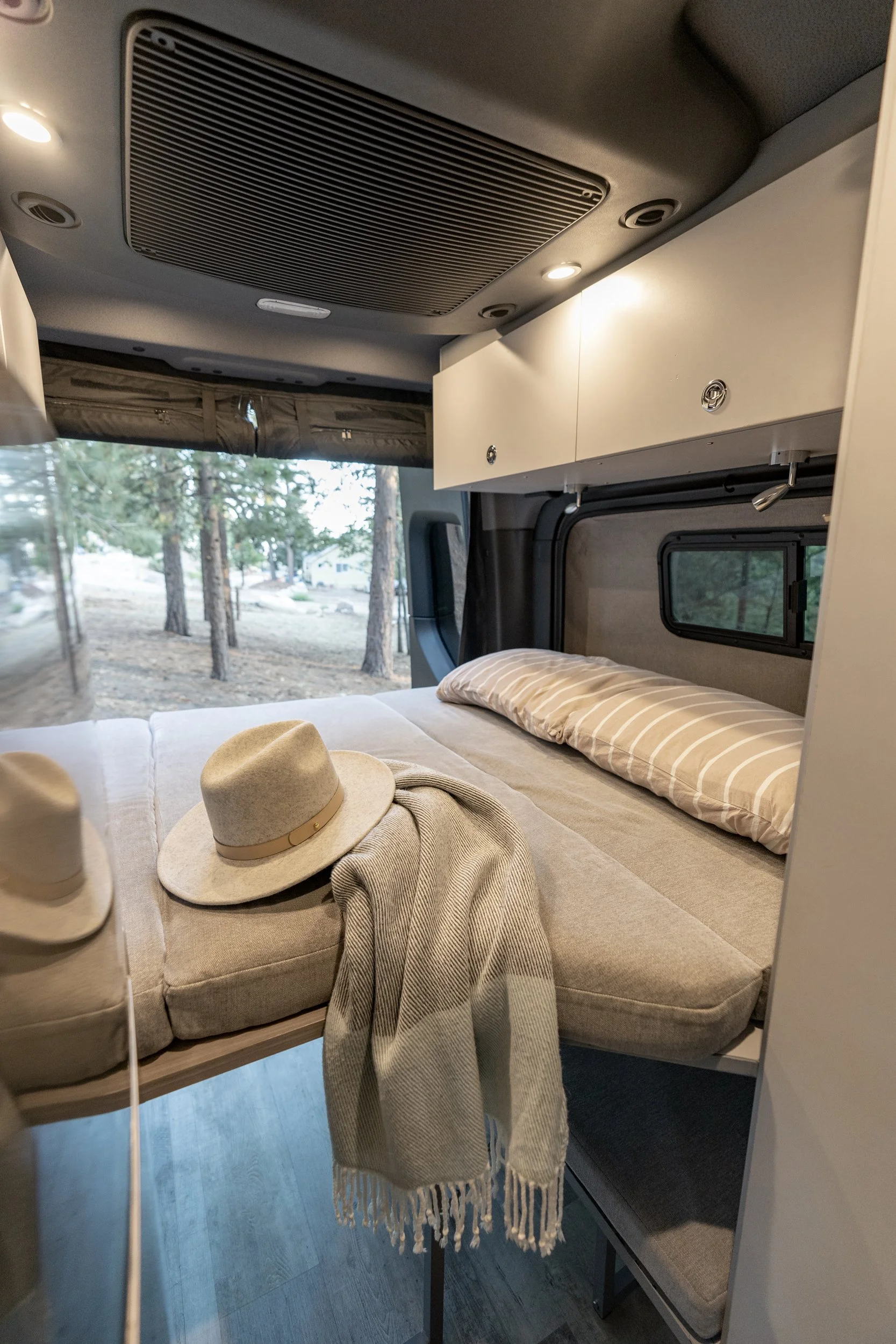

3-in-1 system (bed/dinette/garage)
- 4” Memory foam mattress (70” x 57” or 78” x 57'“ with bump out option)
Built in dinette bench
- Standard on Vision X
- 3” Memory foam cushion
Window flare bump outs
- Standard on Vision X
- Increases bed dimension to 78” x 57”
Driver side overhead cabinet (above bed)
- Optional
Passenger side overhead cabinet (above bed)
Roof rack package
- Standard on Vision X
- Includes TrueVan Roof Rack, rear ladder, and 160W solar panels

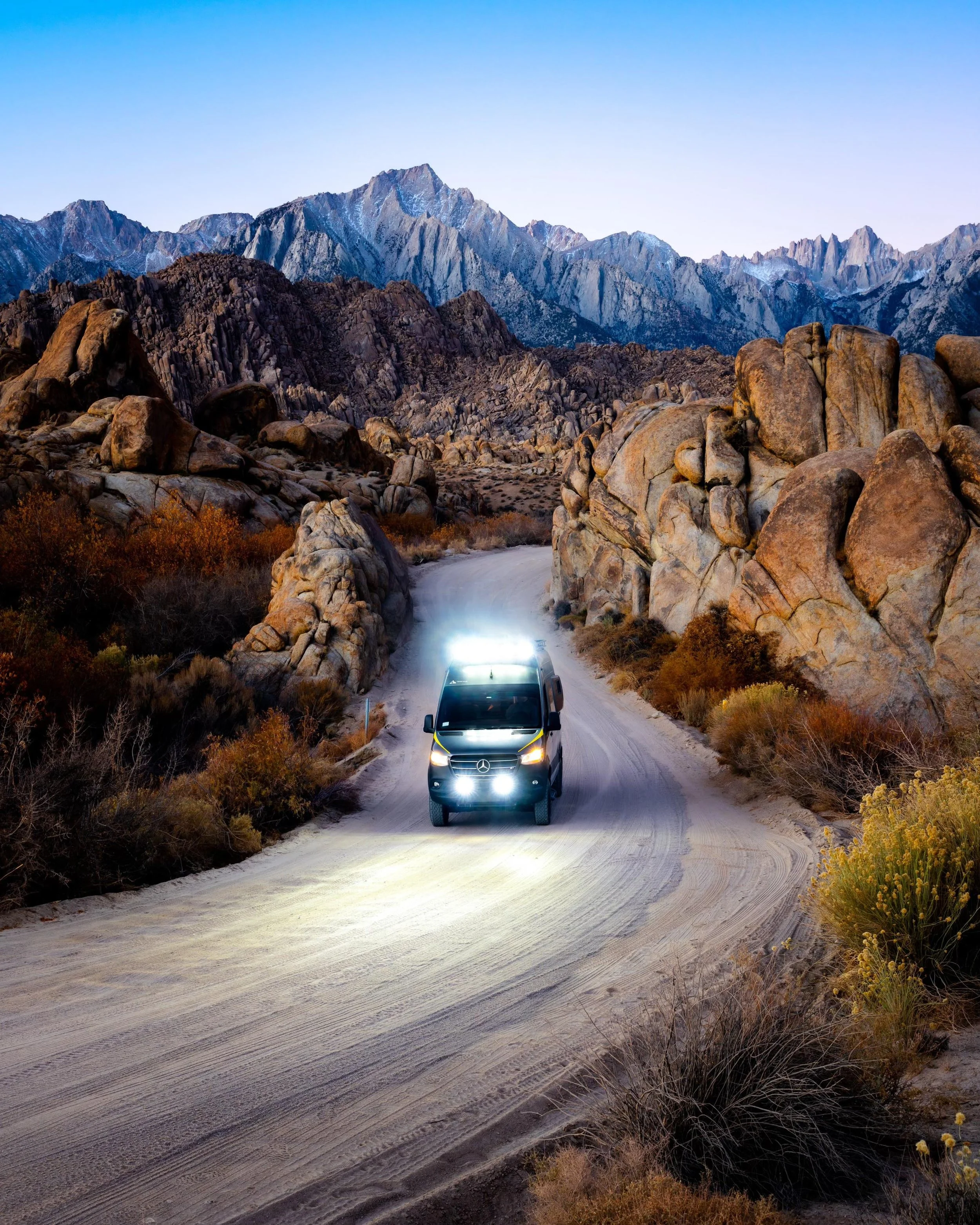

50” off-road LED light bar
- Standard on Vision X
LED LIGHT PODS
- Optional; replaces light bar
- 5x mounted on front of roof rack and 2x mounted on front grill
- Round off-road lights with wider beam angle than light bar.
- IP67 rated
EXTERIOR
Side door running board
External LED porch light
Insulated magnetic black out window shades
- Standard on Vision X
Side & Rear magnetic screen door
- Standard on Vision X
- Magnetic side door entrance
- Black out functionality
- Heavy duty pet latch
POWER SYSTEM
Central control panel for appliances
- Single area to control all cabin lights
- Water heater controls
- Diesel air heater controls
- Water pump controls
- Tank heater controls
50A SHORE POWER CONNECTION
Standard battery capacity
Vision X: 1100Ah (13.2kW)
Vision: 800Ah (9.6kW)
- Individual BMS on each battery
- Factory 10yr warranty with 9yrs of degradation guarantee
500W Kisae charge assist
- Standard on Vision
Secondary alternator
- Standard on Vision X
- Note: Not compatible with vans configured with Mercedes factory rear AC unit
- Up to 3000W charging capability while idle
Victron 3000W 110V inverter
160W Solar panels
- Standard on Vision X
PLUMBING
Water pump
- Auto start/stop with manual switch
Outside shower
Standard fresh water tank capacity
Vision X: 26-gallon or 42-gallon
Vision: 13-gallon
Standard gray water tank capacity
Vision X: 24-gallon
Vision: 8-gallon
External tank heaters
Hidden water fill quick connect
2.5-Gallon BOSCH electric water heater
TECH-EDGE iSeries tank capacity monitor
- First and only tank monitor tested and approved by the US Coast Guard
- NMMA Certified using ABYC® Standards
Dry toilet
Ceramic toilet with black tank
- Adds 24-gallon black tank
Vision X only: Luxury bathroom package
- 6” Expandable shower curtain
- Clothes hangar
- Vanity mirror
- In shower soap dispenser
Rear passenger bench seat slide out drawer
- Adds a slide out drawer underneath the dinette bench seat with a 150lbs weight capacity
TrueVan power awning
- 10.1’ Electric awning
Battery storage upgrade
- Up to 1700Ah (20.4kW)
ADDITIONAL UPGRADES
Battery storage upgrade
- Up to 1700Ah (20.4kW)
TrueVan Roof Skylight
- Not compatible with vans configured with Mercedes factory rear AC unit
- Installed above bed for star gazing
- Allows natural light in during the day
Drivers side overhead cabinet (above bed)
Rear passenger bench seat
- Seats 2 additional passengers (4 total)
- Limits fresh water capacity to 26 gallons
Custom real wood veneer panels
THIRD PARTY COMPONENTS
17” Black Rhino Arsenal rims with A/T tires
Van Compass stage 4.3 suspension kit
Aluminess rear ladder & tire carrier
CA Tune front bumper
Warn VR Evo 12-S winch with synthetic line
- Requires CA Tune front bumper
Owlvan monster box (XL cargo box)
Owlvan 1up bike tray
- Requires Monster Box Upgrade
- Up to 2 bike trays
Velit 12V air conditioner
Van Compass stage 4.3 suspension kit
